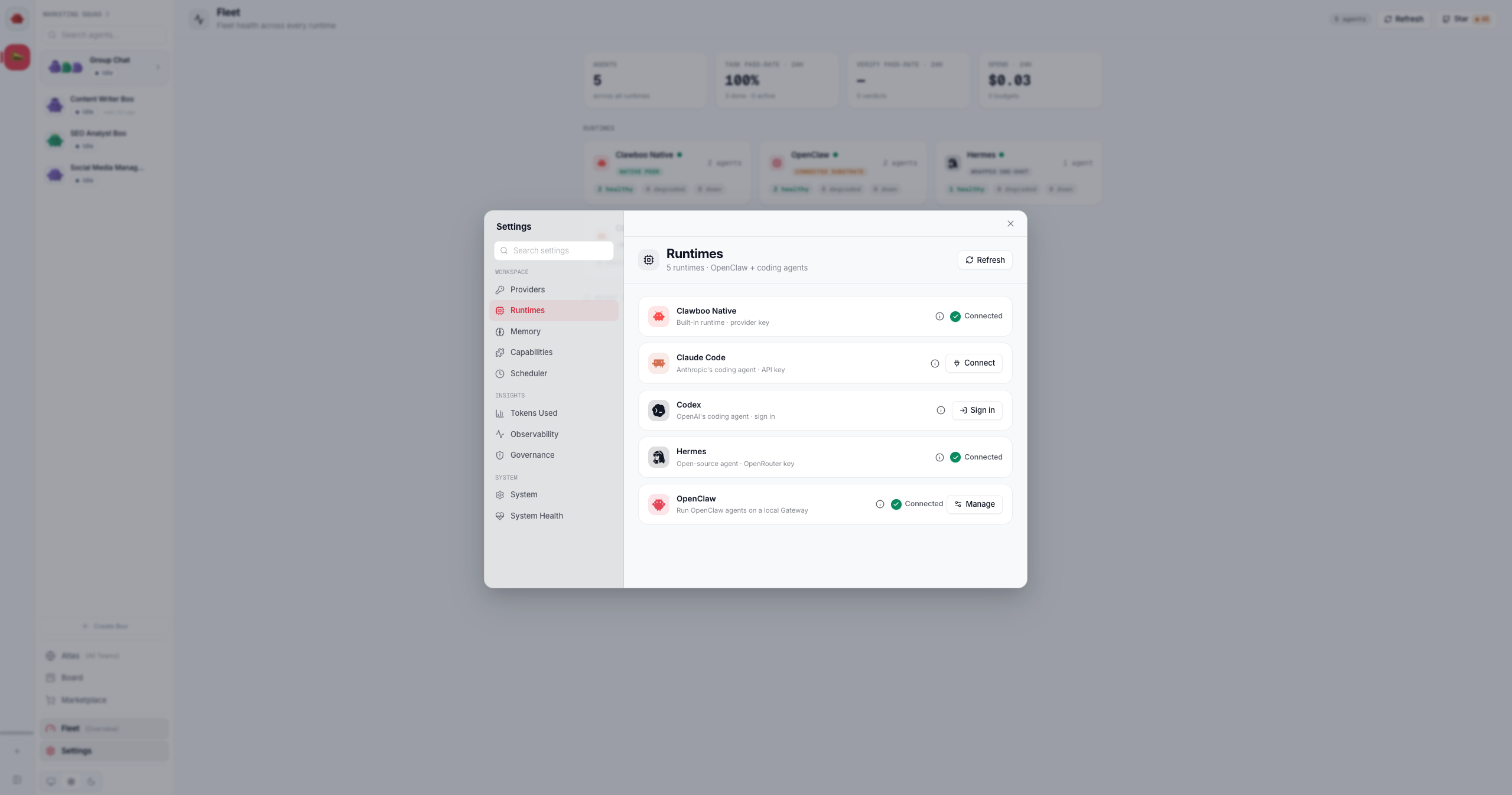

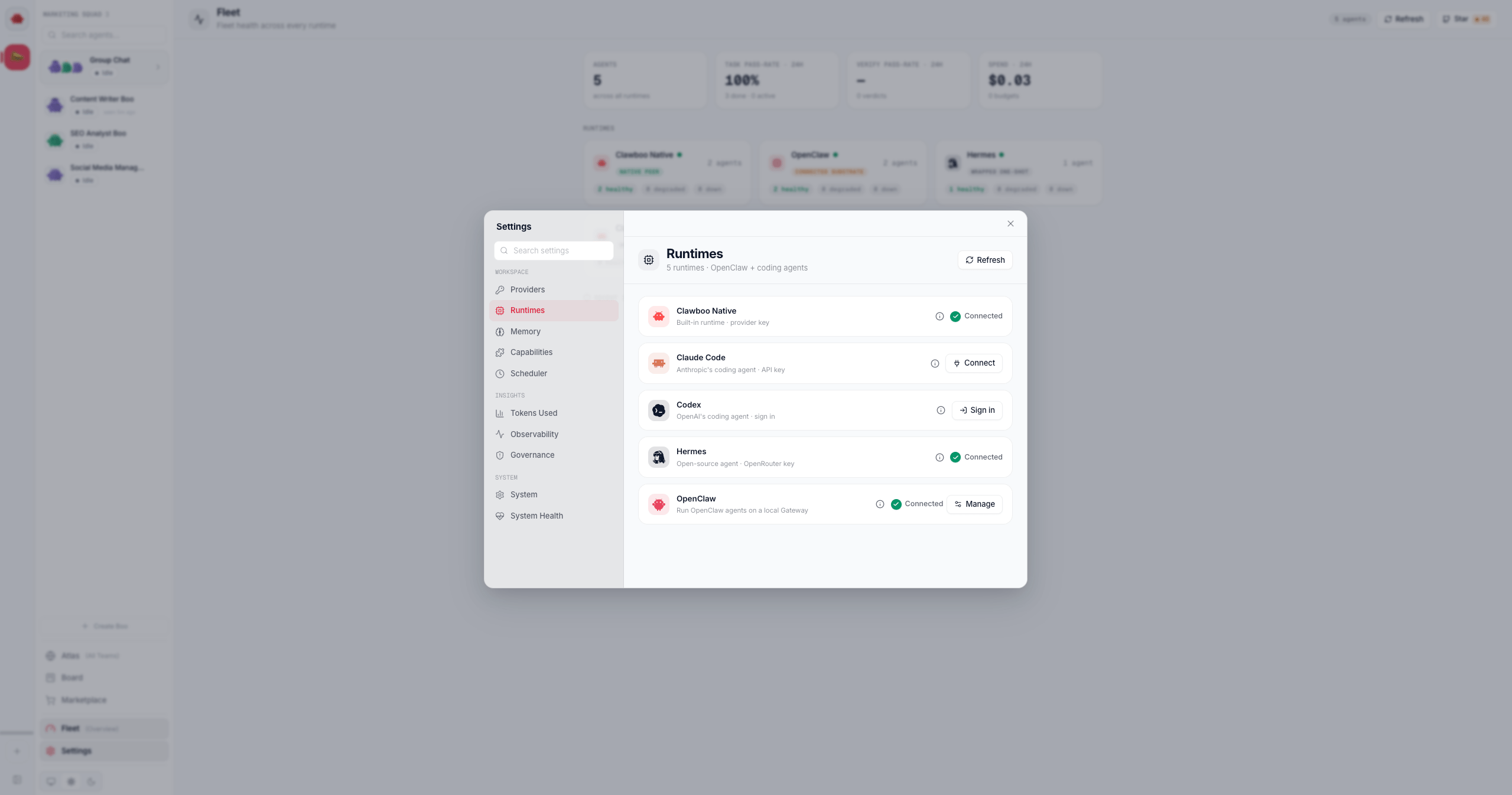

Use this page when you want to bring a non-OpenClaw runtime, claude-code, codex, hermes, or clawboo-native, online so it can execute board tasks. Each runtime is a RuntimeAdapter: Clawboo lists it, installs its CLI, stores its provider key, and reports its connection state. OpenClaw is connected differently (the Gateway, not a CLI install); see OpenClaw. The whole lifecycle runs from the Runtimes panel (RuntimeConnectionCard), backed by /api/runtimes/*. Open it from Settings (the gear at the bottom of the sidebar, or Cmd/Ctrl + ,), then Runtimes under the Workspace group. This page documents what each step does, where keys are stored, and the per-runtime differences. The Runtimes panel: Clawboo Native and Hermes connected, Claude Code one click away, Codex awaiting sign-in, OpenClaw connected

​
Prerequisites

The Runtimes panel is always available; every runtime is listed regardless of install or credential state. What changes per runtime is whether it needs a CLI install, an API key, or an interactive terminal login.
  • claude-code, codex, and hermes are external CLIs Clawboo installs for you. clawboo-native ships inside the Clawboo server; there is nothing to install.
  • npm (bundled with Node.js) is required to install claude-code and codex. hermes installs via Python; pipx is preferred, with a pip --user fallback.
  • A provider API key for the runtimes that authenticate head-less (claude-code, hermes, clawboo-native). codex authenticates through an interactive ChatGPT OAuth login instead of a pasted key — and hermes accepts the same ChatGPT-subscription login as a keyless ALTERNATIVE (hermes auth add openai-codex, then Re-check; see Hermes).

​
At a glance

Every runtime resolves to one connection state that drives the card UI. The state is derived from installed + hasCredential + the runtime’s auth model, and is recomputed (never echoing any secret) after each action.

​
Per-runtime matrix

​
Steps

​
1. List the runtimes

GET /api/runtimes returns { runtimes, available }. Each runtimes[] entry carries the adapter’s participantKind, capabilities, and health, plus its install/auth status (installed, binPath, builtIn, authKind, envVar, hasCredential, installCommand, docsUrl, connectionState). The available[] list is the full descriptor catalog (no secrets) so the panel can render “available to add” cards for runtimes you have not connected yet. A built-in runtime (clawboo-native) always reports installed: true with binPath: null. A CLI runtime reports installed based on whether resolveRuntimeBin finds its health binary; this probe checks PATH and the well-known user-install dirs (the pip --user / pipx location), which is how Hermes is found even though its Python user-site bin is usually off the server’s PATH.

​
2. Install the CLI (claude-code, codex, hermes)

POST /api/runtimes/:id/install is a Server-Sent Events stream. The card opens it from the not-installed state and renders the install log in a terminal box. Events:
  • npm runtimes (claude-code, codex) run npm install -g <pkg>. If npm is not found, the stream emits error with code NPM_MISSING.
  • The pip runtime (hermes) prefers pipx install <pkg>. If pipx is absent it falls back to python -m pip install --user <pkg>, and if it detects a PEP-668 externally-managed environment it retries once with --break-system-packages. If neither pipx nor python is found it emits error with code PYTHON_MISSING. If pipx is absent and the only Python it can resolve is older than the runtime’s minimum (3.11 for Hermes), it emits PYTHON_TOO_OLD instead, naming the version it found and suggesting a newer Python or pipx.
  • Calling install on a built-in runtime returns 400 (plain JSON, the SSE stream never opens); clawboo-native has nothing to install.
A global npm install can hit EACCES. When the installer’s stderr contains EACCES or “permission denied”, the stream emits an error event suggesting sudo <installCommand>. Prefer a Node version manager (nvm/fnm) or Homebrew over sudo.

​
3. Connect (api-key runtimes)

POST /api/runtimes/:id/connect with body { apiKey, provider? } stores the key in the encrypted vault and returns the recomputed connectionState. The key is trimmed. An empty key returns 400 ({ error: "apiKey is required" }), with one exception: for clawboo-native with an explicit provider, omitting apiKey is a keyless reconnect against a key that already resolves for that provider (200, nothing stored). That is what the Providers manager’s one-click Use sends; when nothing resolves for that provider the 400 reads no existing key found for <provider> instead. The response never echoes the key. The card sends the key from the needs-auth state (the input label is the runtime’s envVar, with a show/hide toggle). On success it clears the input and re-fetches status, which flips the card to ready. For clawboo-native the optional provider field routes the key to the right vault slot. Without it, the key lands in ANTHROPIC_API_KEY; with provider: "openai" or "openrouter" it goes to that provider’s env var (validated against the runtime’s known set), and provider: "ollama" is a keyless no-op (nothing is stored).

​
4. Connect (codex, oauth)

codex cannot be connected with a pasted key on current versions. POST /api/runtimes/codex/connect is a no-op on storage that probes the login (codex login status) and returns the CURRENT state — ready when you are already signed in, else:
The card offers a one-click Sign in with ChatGPT (Clawboo’s local server runs codex login for you; the CLI opens your browser and you approve there — no code to type). The manual codex login command remains the fallback: run it in a terminal, then click Re-check. A signed-in Codex is detected by the status probe (the token file is never read), and each spawned run gets a managed CODEX_HOME seeded with a copy of your ~/.codex/auth.json; Clawboo does not store a Codex credential in its vault. The subscription’s primary home is the Providers page (the ChatGPT subscription row) and the onboarding wizard’s OpenAI card (see Codex); once it is connected, the Hermes and OpenClaw surfaces offer their own optional subscription links.

​
5. Health-check a provider key

POST /api/runtimes/clawboo-native/healthcheck with body { provider, apiKey? } verifies a credential before anything commits to it. Every clawboo surface that takes or reuses a key runs this first — the onboarding step on Continue, the Providers hub on Save, the runtime connect card before it writes the vault, and the Providers manager’s Use before it reconnects on a saved key. On the normal path a credential that doesn’t answer is not stored: the surface shows the reason inline and stops. Each one also offers an explicit override — Continue anyway / Save anyway / Connect anyway / Use anyway — and choosing it deliberately stores the credential unverified, so a provider this machine simply can’t reach can’t strand you. It makes a single authenticated GET to the provider’s lightweight models/health endpoint: It returns { ok: true } on a 2xx, or { ok: false, error } on a bad key (401/403 → “Invalid API key.”), an 8-second timeout, or a network failure. The key is used for exactly that one fetch, never persisted to the vault, never logged, never echoed. This route is only valid for clawboo-native; any other runtime id returns 400. apiKey is optional — omit it to probe the key already stored for that provider; 400 if nothing is stored either. An unknown provider also returns 400.

​
6. Disconnect

POST /api/runtimes/:id/disconnect deletes the runtime’s stored credential and returns the recomputed connectionState. It keeps the CLI installed, so the card drops from ready to needs-auth. A connected runtime shows the button in its Manage body, and it confirms first, since you will need to re-enter the key to reconnect. For codex the button is labelled Sign out and calls the logout route below instead; POST /api/runtimes/codex/disconnect (no envVar) has no stored credential to delete and is not wired to any button.

​
7. Sign out (codex)

POST /api/runtimes/:id/logout is the oauth counterpart to Disconnect. It runs the CLI’s own codex logout, invalidates the cached auth probe, and re-probes, so the returned connectionState reflects the real post-logout state. It returns 404 ({ error: "runtime '<id>' has no sign-out" }) for an api-key runtime, which uses /disconnect, and 400 if the CLI is not installed.

​
Where keys are stored

API keys live in an encrypted vault at ~/.clawboo/secrets/runtime-keys.json (under resolveClawbooDir(); the CLAWBOO_HOME override applies), keyed by env-var name. Each value is encrypted with AES-256-GCM under a 32-byte master key at ~/.clawboo/secrets/master.key (mode 0600, inside a 0700 dir). CLAWBOO_SECRETS_MASTER_KEY overrides the on-disk key (32-byte base64, 64 hex chars, or a raw 32-char string). At run time the key is resolved by resolveRuntimeKey(envVar), highest priority first:
  1. process.env[envVar]
  2. the encrypted vault (decrypt)
  3. OpenClaw’s ~/.openclaw/.env
This is defense in depth. The decrypted value is never logged, never returned in an HTTP response body, and never written to SQLite, audit, or observability records; it flows only into a spawned runtime process’s environment. A wrong, rotated, or lost master key fails closed (resolution returns null); it never throws into a request or leaks partial plaintext.
Because resolveRuntimeKey falls back to process.env and OpenClaw’s .env, a runtime can already read as connected without an explicit Connect. For example, if ANTHROPIC_API_KEY is exported in the server’s environment or present in ~/.openclaw/.env, both claude-code and clawboo-native resolve a credential and report ready.

​
Verify it worked

  • Re-fetch GET /api/runtimes (or click Re-check in the card). The runtime’s connectionState should read ready, and its health.ok should be true.
  • For CLI runtimes, health reports the binary presence; for clawboo-native, health reports whether any routable provider key (or OLLAMA_BASE_URL) resolves.
  • Run a board task on the runtime via POST /api/runtimes/:id/run; the connected key is injected from the vault into the spawned process’s environment.

​
Troubleshooting

Hermes installs but reads as not-installed. The hermes binary lands in the Python user-site bin, which is usually off the server’s PATH. Clawboo resolves it via resolveRuntimeBin (PATH plus the known user-install dirs), so this is normally handled; but a fresh install’s complete event may carry a warning if the binary is not yet resolvable, in which case restart the server.
Codex shows “Needs login” after a successful codex login. Click Re-check to re-probe (codex login status is parsed; a signed-in Codex reads ready). Codex never reaches ready from a vault key; its auth lives in CODEX_HOME.
POST /api/runtimes/:id with an unknown :id returns 404 ({ error: "unknown runtime '<id>'" }). Only claude-code, codex, hermes, and clawboo-native are valid ids; OpenClaw is not a /api/runtimes runtime.
