Use this page when you want to see what your team is actually doing; the durable kanban board is Clawboo’s transactional record of every task, who owns it, whether it verified, and what it cost. The board is canonical; the group chat is narration of it. This page covers the Board panel (its columns and cards), the per-task detail drawer, and the chat-fused board that interleaves task cards directly into group chat. The Board panel lives in the BoardPanel React module and reads GET /api/board; the detail drawer (TaskDetailDrawer) reads GET /api/board/:taskId, GET /api/board/:taskId/executions, and GET /api/board/:taskId/workspace/detail. For the underlying model, the state machine, the atomic claim, and dependency chains, see The board. For the full request/response shapes, see the Board API reference. The board: status columns with task cards carrying runtime and cost badges

​
Prerequisites

The Board panel is always available. Its subsystem is always on, so the panel renders real content with no feature gate; an empty board is just a board with no tasks yet.
  • A running Clawboo dashboard (clawboo).
  • Tasks on the board. Tasks appear when a team delegates work in group chat, when an agent claims work, or when you create one directly via POST /api/board. A fresh install with no team activity shows empty columns.

​
Open the board

Click Board (the kanban-square icon) in the primary nav of the left sidebar, or press Cmd/Ctrl + 4. The panel mounts in the main content area.
The number shortcuts cover the four sidebar work surfaces only: Cmd/Ctrl+1 Atlas, +2 Fleet, +3 Marketplace, +4 Board. Everything else (Scheduler, Tokens Used, System, and the rest) lives in the Settings modal (Cmd/Ctrl+,).

​

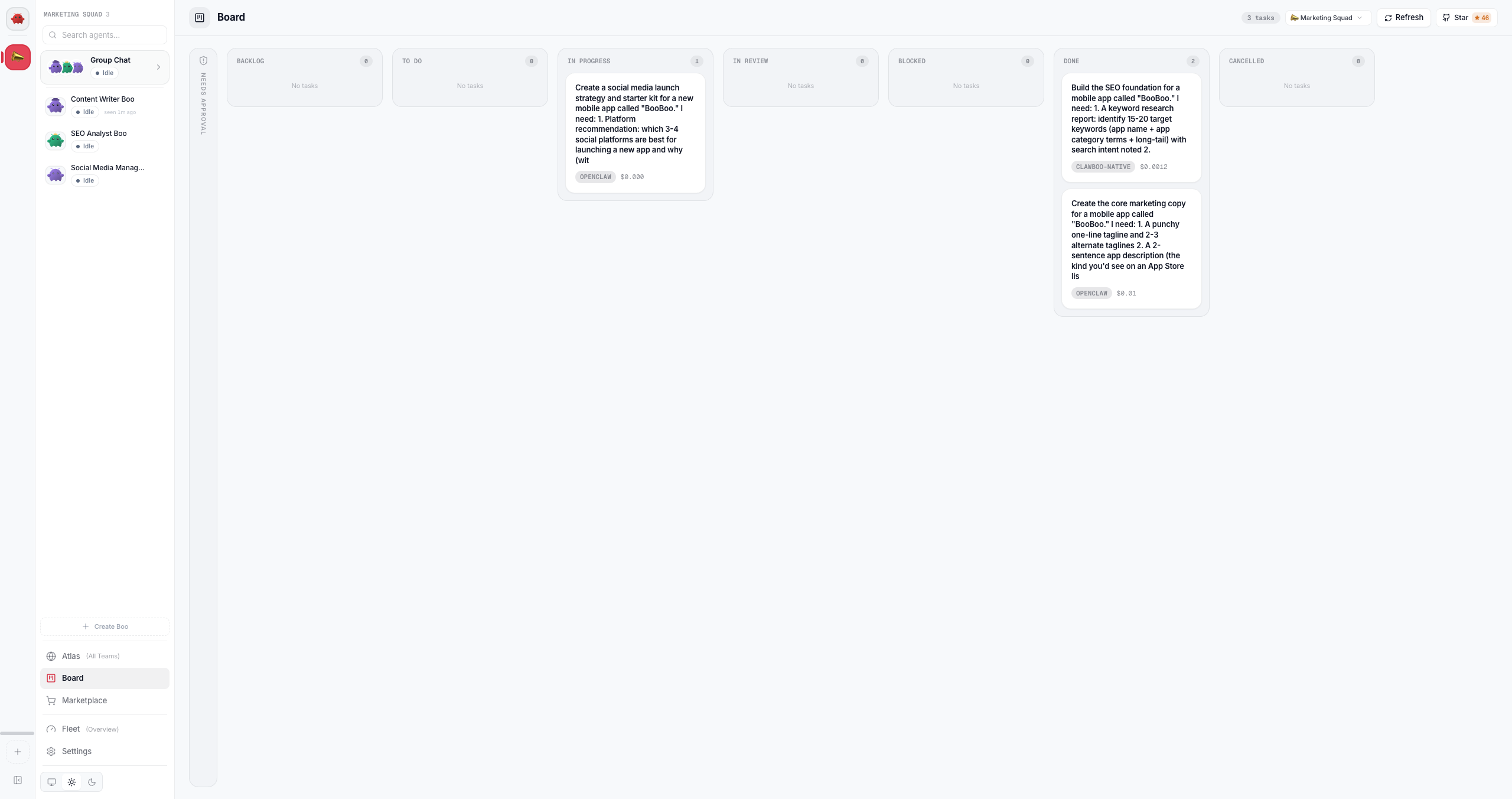

The columns

The board renders seven status columns, one per task status, in lifecycle order: Ahead of those sits a Needs approval column, always the first column on the board. It is scoped to the team filter, collapses to a thin rail when there is nothing pending, and auto-expands the moment a request arrives. It is fed by its own poll rather than by GET /api/board, so a board outage never hides a pending, time-sensitive gate. See Approvals. Each column shows its label and a live count of the tasks in it. The panel header shows a total task count ({N} tasks) and polls GET /api/board every five seconds, so status changes and new tasks appear without a manual refresh. A Refresh button forces an immediate re-fetch. Those reads overlap on purpose (the poll, the Refresh button, and the reconcile that follows a manual create all share one path), so they are sequenced: a response may only update the board while it is still the newest read and no local change has been committed since it was issued. A read that resolves out of order is discarded and the next poll reconciles instead, so a card you just created or dragged is never briefly reverted by a request that was already in flight. Because the board is a live projection of agent activity — cards are created and moved by agents as they work — a one-line hint under the header (“AI agents continuously create and move work. You can also manage tasks manually.”) sets that expectation up front. The manual path is real, though, and there are three ways to drive the board by hand: a New task button in the header opens a composer, each task’s status is editable from its detail drawer, and you can drag a card between columns (see below). A task whose status falls outside the canonical seven is not silently dropped; an Other column is appended only when such a task exists, so off-list statuses stay visible and counted.
Until the first fetch resolves, the board shows skeleton columns. If that first fetch fails, the board shows a “Couldn’t load the board” error with a Retry link (distinct from a genuinely empty board). A transient poll failure after a good load keeps the last good snapshot rather than blanking an actively-watched board.
A genuinely empty board (loaded fine, zero tasks) shows one “No tasks yet” empty state — explaining that agents populate the board automatically as work is delegated, with a New task button to add the first one manually — instead of seven identical empty columns.

​
Creating a task manually

The header’s New task button opens a small composer for adding work to the board by hand — the human counterpart to agent delegation. It collects a title (required), an optional description, a team (prefilled from the active team filter), and an initial status (To do by default, or Backlog for triage), then writes it through POST /api/board. On success the task appears on the board immediately (optimistically, then reconciled by the next poll) and a toast confirms it; a poll that was already in flight when the task was created is discarded rather than blanking the new card. A failed write keeps the composer open and toasts the error. Once on the board, a manually-created task is indistinguishable from a delegated one — an agent can claim and run it normally.

​
Moving a task by drag-and-drop

Each card has a grip handle (top-right, visible on hover or keyboard focus). Dragging a card to another column is a status change: it writes through the same PATCH /api/board/:taskId path as the drawer’s status editor, so the server stays authoritative and the same rules apply.
  • Only legal moves are offered. Mid-drag, columns the card can’t legally transition to (per the state machine) are dimmed and won’t accept a drop; terminal cards (done / cancelled) and off-list Other cards aren’t draggable at all.
  • The agent-release guard still applies. Dragging an assigned task to To do — which unassigns its agent — asks for confirmation first, exactly as the drawer editor does.
  • Optimistic + poll-safe. The card moves instantly and is reconciled against the server; a rejected move (e.g. a → done verification gate) rolls back with a toast. Neither an in-flight move nor a just-committed one is reverted by the five-second poll, including a poll already in flight when the move landed.
  • Keyboard and touch. Focus a card’s handle and press Space to pick it up, arrow keys to choose a column, Space to drop, Escape to cancel; touch drag is supported too.
Clicking a card (rather than its handle) still opens the detail drawer — a click and a drag don’t conflict.

​
Task cards

Each task is a card showing its title plus a row of badges:
  • Runtime badge: the task’s assigneeRuntime (the runtime that owns the work), defaulting to openclaw when unset.
  • Verification badge: present only once a verification verdict is stored. The card parses the task’s verification JSON and renders the verdict: pass (green), fail (red), or debt for completed_with_debt (amber).
  • Cost: the task’s costUsd, shown only when a cost is recorded. An exactly-zero cost reads $0.000; a sub-cent cost keeps four decimals ($0.0004) so a real charge is never rounded away; a cost of one cent or more shows cents ($0.42).
  • Sub badge: a “sub” marker when the task has a parentTaskId (it was spawned by a delegation).
Click any card to open its detail drawer.

​
The task-detail drawer

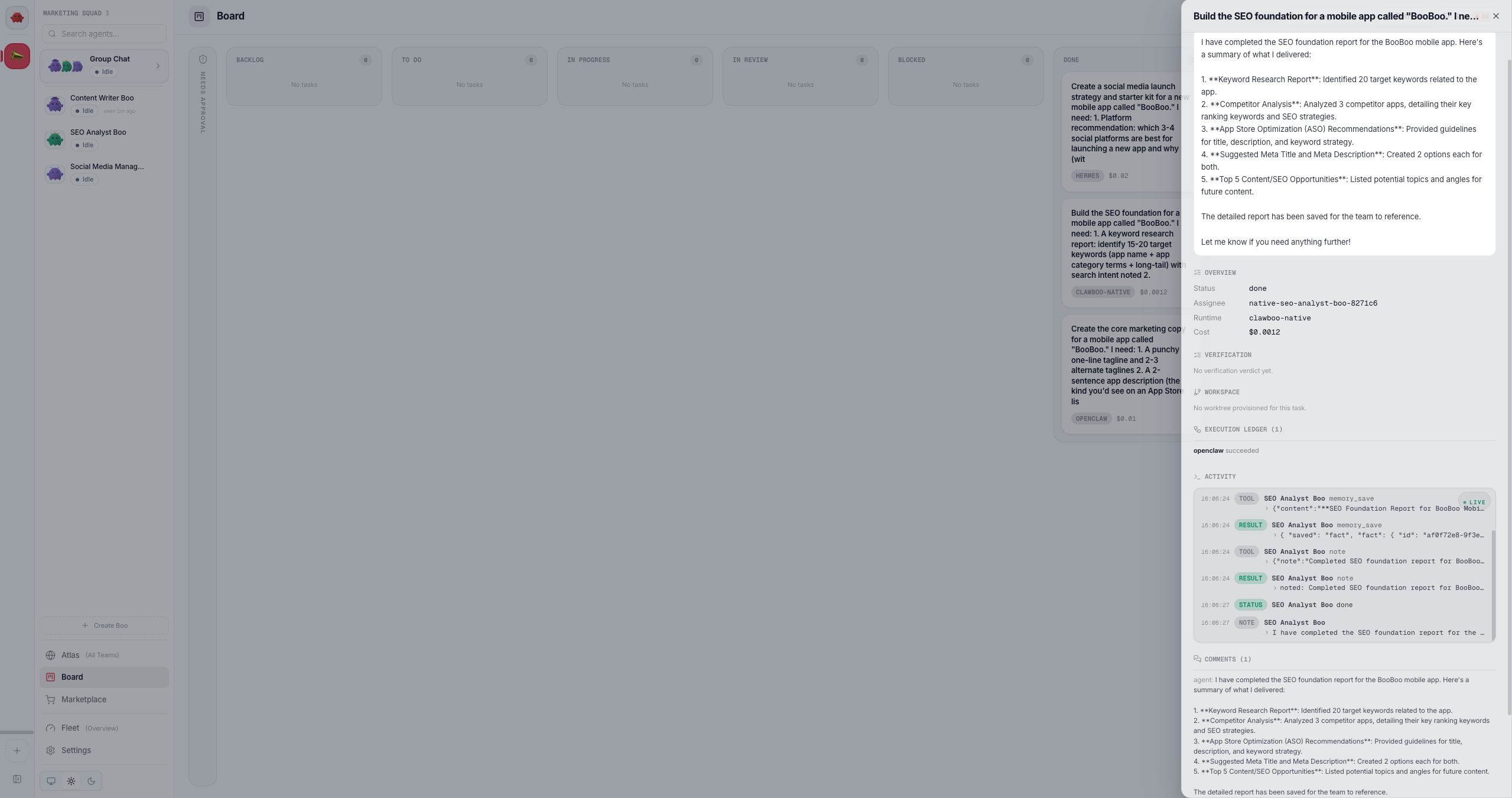

Clicking a card slides in a right-hand drawer (TaskDetailDrawer) for that task. It loads three reads in parallel: the task itself, its execution ledger, and its workspace detail, and presents them as sections. Press Escape or click the scrim to close. The task-detail drawer: output, verification, execution ledger, live activity, and comments The drawer sections, top to bottom:

​
Overview

The task’s core fields: Status, Assignee (assigneeAgentId), Runtime (assigneeRuntime, default openclaw), Cost (costUsd to four decimals), and Parent (a truncated parentTaskId, shown only for subtasks). Status is an inline editor, not just a label: a dropdown that offers only the transitions the state machine permits from the current status (so it never lets you pick a move the server would reject), writes through PATCH /api/board/:taskId, and updates optimistically, rolling back and toasting if the write is refused, with the message naming the cause (an illegal transition vs. the verification gate). A committed change also moves the card to its new column on the board immediately rather than waiting for the five-second poll; it goes through the same shared commit path as drag-and-drop, so a read already in flight can’t snap the card back. Releasing a task to To do additionally clears its assignee, runtime, and stored verdict, so the card’s verification badge disappears and its runtime badge falls back to openclaw, matching what the server writes. Terminal tasks (done / cancelled) have no legal moves, so the control locks. When a → done is refused specifically by the verification gate (the task carries a non-promotable verdict), the editor doesn’t dead-end: it offers a “Complete anyway” confirmation that re-submits with the server’s humanOverride. That’s the supported path for a human shipping despite a non-promotable verdict — and, like on the server, the override is recorded in the audit log. An illegal transition can’t be overridden this way (the override only bypasses the verification gate, not the state machine). This lives in the shared status-mutation path, so it works the same whether you change status from this drawer or by dragging a card to the Done column.

​
Verification

The stored verification verdict, if any. When present, it shows the verdict pill (pass / fail / completed_with_debt), the reviewer that produced it (runtime and model, surfaced so you can judge a same-model review’s independence caveat), any debt notes, and any critic findings (severity + title). When the task has no verdict it reads “No verification verdict yet”; unverified is not failing; an un-run gate does not block a task.

​
Workspace

The per-task git worktree detail, read from GET /api/board/:taskId/workspace/detail:
  • Branch (clawboo/task-<id>) and the absolute Worktree path.
  • A Diff summary (N files, +insertions −deletions).
  • System-of-record files: TASK.md, task-progress.md, DECISIONS.json, init.sh, VERIFICATION.md, AGENT_HANDOFF.json (only those present), each as a collapsible disclosure showing its contents.
  • The unified diff against the branch-point baseline (the SoR bookkeeping files are excluded from it).
A task with no worktree (research/review tasks, or work not yet provisioned) reads “No worktree provisioned for this task.”

​
Execution ledger

Every spawned run for the task (GET /api/board/:taskId/executions), oldest first. Each row shows the executor (executorType), the run’s status, its cost, and its token counts (input↓ output↑). When a run carries an error, that failure reason is shown inline beneath the row; this is where a silently-failed delegate surfaces its reason.

​
Activity

A live terminal (ActivityTerminal) scoped to this task, the streaming tool-call / tool-result / error feed for the task’s runs. It tails the observability event log, so you can watch a run progress in real time. See Observability.

​
Comments

The task’s comments (discussion and system notes), each prefixed by its authorType. The agent report-up summary that a child writes when it finishes a delegation lands here as a comment.

​
Lineage / deps

The task’s ancestor chain (the parent-task lineage from the recursive-CTE ancestors read), rendered as a chain of short ids (a1b2c3d4 → …). A top-level task reads “Top-level task (no ancestors).”

​
The chat-fused board

In group chat the board is not a separate tab; task cards are interleaved directly into the conversation timeline. When the leader delegates, that delegation becomes a board task, and a BoardTaskCard appears inline at the moment the task was created. How it works:
  • Projection store. GroupChatPanel renders cards from a read-only board projection store (useBoardStore), not from the chat transcript. On opening a team it loads the authoritative snapshot via boardClient.listTasks(teamId) (a GET /api/board?teamId=… read), so the cards survive a page refresh. The orchestrator’s client-derived change-feed then applies live mutations (applyChange) to the same store, merged last-write-wins by updatedAt.
  • Interleaving by createdAt. Each non-cancelled board task is placed into the timeline at its createdAt timestamp, alongside the chat blocks and any live streaming cards. So a task card appears in causal position, right where the delegation happened, and is not appended to the bottom.
  • Live status. The BoardTaskCard shows the task title, a status pill (Queued → Working → Review → Done / Blocked), and the assignee’s avatar + name. As the board change-feed flips the task’s status, the card’s pill updates in place. A completed (done) card also shows the report-up summary; because the summary is a board comment (not a task-row field), a card reloaded after a refresh fetches it lazily from GET /api/board/:taskId.
The chat-fused board cards and the standalone Board panel read the same canonical board. The panel is the cross-team operator view; the inline cards are the per-team narration. Neither is a write path back to the board; a chat message describes a decision; the board mutation is the decision.

​
Verify it worked

  • Open Board. The header shows {N} tasks, and tasks sit in the column matching their status. Click a card and confirm the drawer’s Overview status matches the card’s column.
  • In a team’s group chat, delegate a piece of work and watch a BoardTaskCard appear inline with a Working pill, then flip to Done with a summary when the run completes.
  • Refresh the page; the inline cards reload from GET /api/board?teamId=… (refresh-survival), and the panel re-polls. Both show the same task state.
  • For the raw data, fetch it directly:

​
Troubleshooting

A task is stuck in “In progress” forever. tasks.updated_at is a liveness heartbeat: the drain that owns the task beats the row every 30 s on a timer, so a stale sweep releases it after CLAWBOO_BOARD_STALE_TTL_MS (default 3 minutes, six missed beats) once the owner is gone. The server orchestrator’s own 8-minute idle watchdog covers the other case, a delegate that is alive but has gone silent (and it keeps running with the browser closed). See the board’s reconciliation.
A task reached “Done” but the verification badge says nothing. A task with no stored verdict is unverified, not failing, and lands done normally. The verification gate only blocks a known non-promotable verdict. The autonomous worktree-completion path always writes a verdict before →done; a manually completed task may carry none. See Verification.
“Couldn’t load the board.” The first GET /api/board failed (server not up, or a transient error). Use the Retry link. If it persists, confirm the dashboard is running and reachable on its API port (default 18790).
